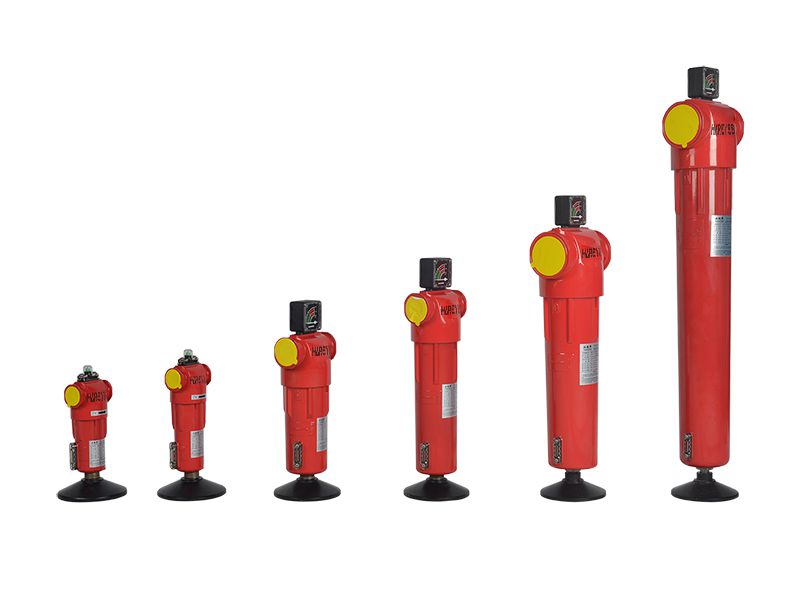

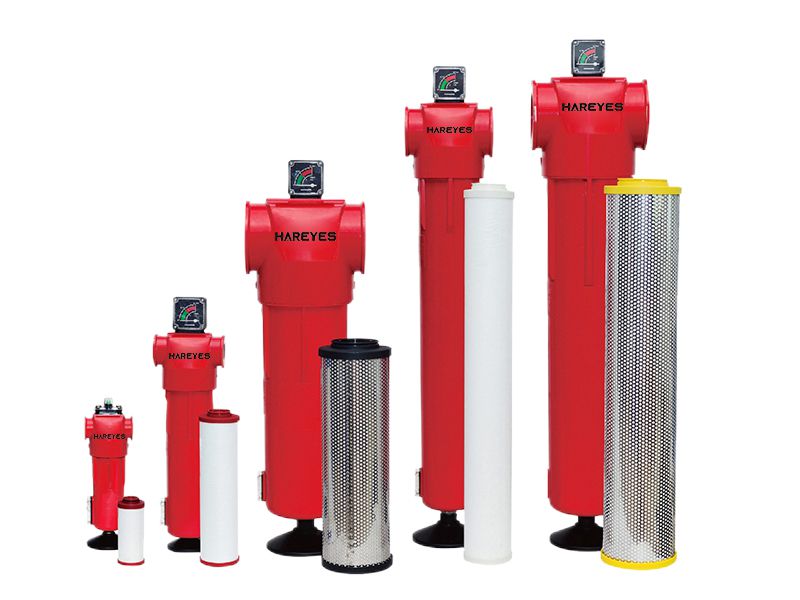

Compressed Air Filter
- Constructed with an aluminum alloy casing for structural precision and extended lifespan.
- Boasts a refined exterior design and superior threading or flange technology for effortless installation and maintenance.
- Features an advanced filter core design, making it compact and reducing the space needed for maintenance.
- Equipped with a differential pressure gauge to measure and display filter condition, thereby avoiding excessive pressure drop or abnormal filter clogs.
- Includes a reliable automatic liquid discharge mechanism.
| Model | FA-10 | FA-15 | FA-18 | FA-20 | FA-24 | FA-28 | FA-36 | FA-50 | FA-75 | FA-100 | FA-130 | FA-170 | FA-190 | FA-250 | FA-280 | FA-410 |
| Port Size | Rc1/2" | Rc3/4" | Rc3/4" | Rc1" | Rc3/4" | Rc3/4" | Rc1" | Rc1" | Rc1-1/2" | Rc2" | Rc2-1/2" | Rc2" | Rc2-1/2" | Rc3" | Rc3" | Rc3" |
| Flow Rate | I/S | 16.7 | 25 | 30 | 33.3 | 40 | 46.7 | 60 | 83.3 | 125 | 166.7 | 216.7 | 283.3 | 316.7 | 416.7 | 466.7 | 683.3 |
| (m³/min) | m³/min | 1 | 1.5 | 1.8 | 2 | 2.4 | 2.8 | 3.6 | 5 | 7.5 | 10 | 13 | 17 | 19 | 25 | 28 | 41 |
| | CFM | 35.3 | 53 | 63.6 | 70.6 | 84.7 | 99 | 127.1 | 177 | 264.8 | 353.1 | 459 | 600.3 | 671 | 883 | 988.7 | 1448 |
| QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Dimensions | W (mm) | 96 | 96 | 96 | 96 | 96 | 138 | 138 | 138 | 138 | 174 | 174 | 174 | 174 | 220 | 220 | 220 |
| D (mm) | 79 | 79 | 79 | 79 | 79 | 111 | 111 | 111 | 111 | 142 | 142 | 142 | 142 | 184 | 184 | 184 |
| H (mm) | 261 | 261 | 295 | 261 | 295 | 403 | 403 | 503 | 503 | 736 | 736 | 1016 | 1016 | 793 | 793 | 1050 |
| A | 29 | 29 | 29 | 29 | 29 | 37 | 37 | 37 | 37 | 58 | 58 | 58 | 58 | 74 | 74 | 74 |
| B | 198 | 198 | 233 | 198 | 233 | 296 | 296 | 396 | 396 | 607 | 607 | 887 | 887 | 649 | 649 | 906 |
C
(space of the housing) | 118 | 118 | 153 | 118 | 153 | 208 | 208 | 303 | 303 | 469 | 469 | 794 | 794 | 514 | 514 | 764 |
| Model | FB-007 | FB-015 | FB-024 | FB-035 | FB-060 | FB-090 | FB-120 | FB-150 | FB-240 | FB-240 | FB-360 | FB-450 |
| Flow Rate (m³/min) | 0.7 | 1.5 | 2.4 | 3.5 | 6 | 9 | 12 | 15 | 24 | 30 | 36 | 45 |
Inlet/Outlet Size
(inch/mm) | G3/4"-1 | G3/4”-1 | G111/2” | G111/2” | G111/2” | G211/2” | G211/2” | G211/2” | DN80 | DN80 | DN100 | DN100 |
| Max. Working Pressure (Bar/PSI) | 16/232 | 16/232 | 16/232 | 16/232 | 16/232 | 16/232 | 16/232 | 16/232 | 12/174 | 12/174 | 12/174 | 12/174 |
| Dimensions | W (mm) | 280 | 280 | 340 | 340 | 490 | 550 | 930 | 930 | 1400 | 1400 | 1420 | 1420 |
| D (mm) | 230 | 230 | 275 | 275 | 420 | 445 | 825 | 825 | 1300 | 1300 | 1320 | 1320 |
| H (mm) | 90 | 90 | 110 | 110 | 110 | 150 | 150 | 150 | 390 | 390 | 480 | 480 |
| N.W. (kg) | 1.2 | 1.2 | 2.2 | 2.2 | 2.7 | 11 | 16 | 16 | 40 | 40 | 55 | 60 |
| Filter Element Model | 007X1 | 015X1 | 024X1 | 035X1 | 060X1 | 090X1 | 120X1 | 150X1 | 120X2 | 150X2 | 120X3 | 150X3 |
Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
