Smart Two Stage Permanent Magnet VSD Screw Compressor
Inquiry

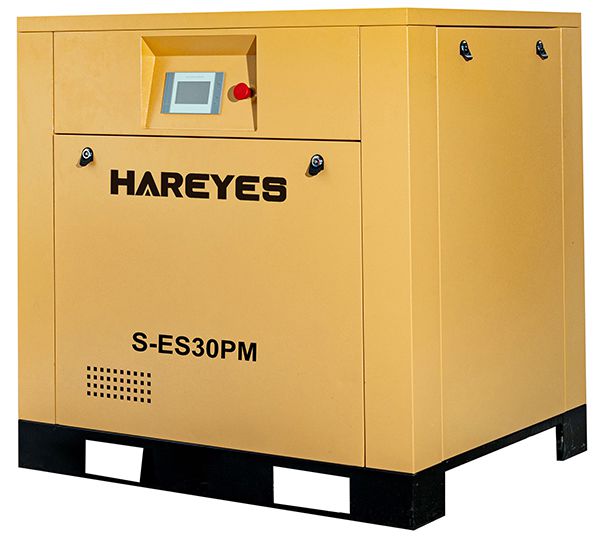

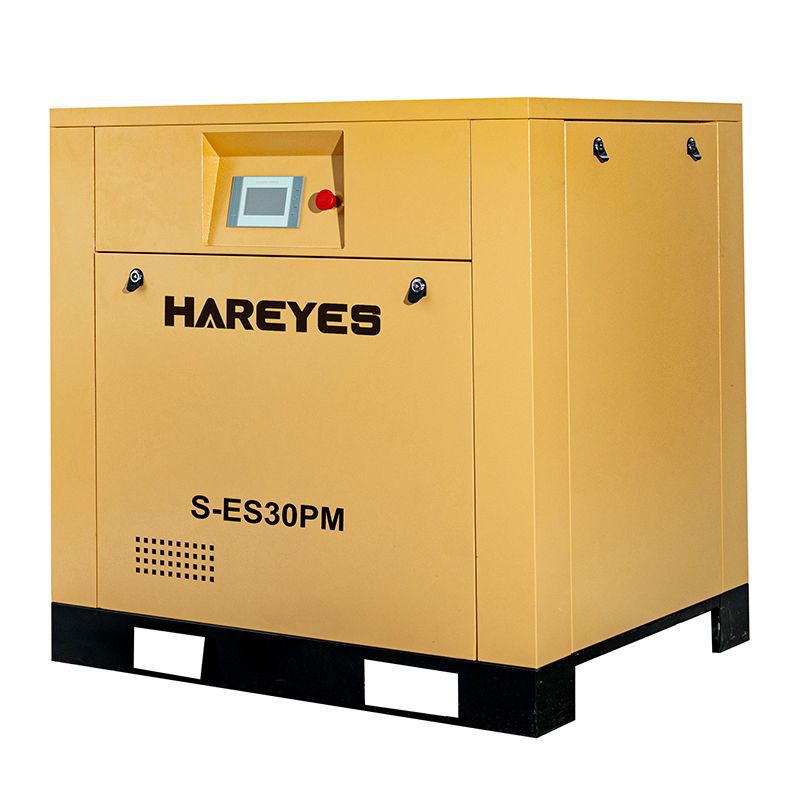

Smart Two Stage Permanent Magnet VSD Screw Compressor

  • Air Displacement (m³/min): 3.5～14.4
  • Discharge Pressure (MPa/Bar): (0.8/8)/(1.0/10)/(1.2/12)
  • Power (kW): 22~75 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Smart Two Stage Permanent Magnet VSD Screw Compressor

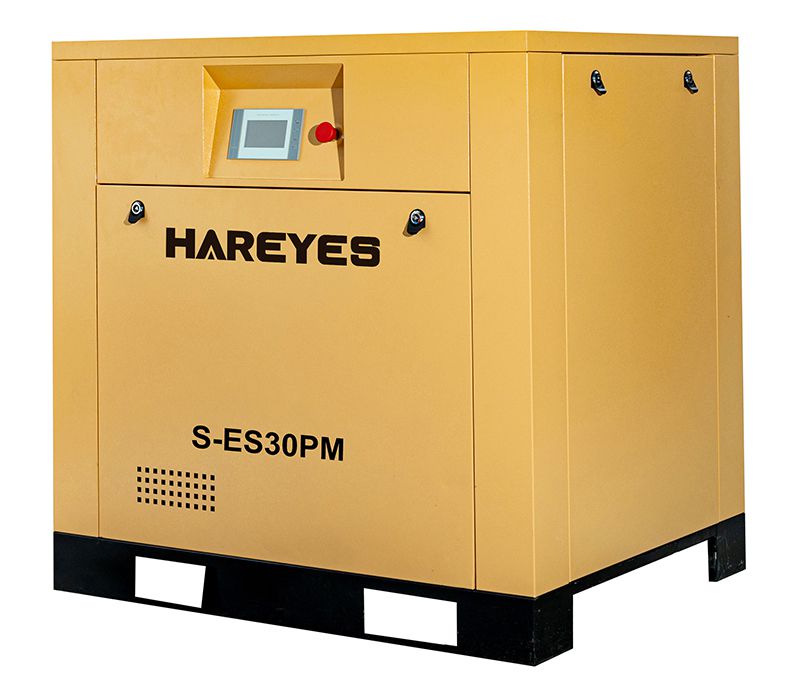

    S-ES30PM
    Smart Two Stage Permanent Magnet VSD Screw Compressor 22kW/30HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)    		 Dimensions
    Length*Width*Height (mm)
    4.16/0.8/8 4.0/1.0/10 3.5/1.2/12 144/116 141/145 124/174 22/30 1140*870*1120
  • Smart Two Stage Permanent Magnet VSD Screw Compressor
    S-ES50PM
    Smart Two Stage Permanent Magnet VSD Screw Compressor 37kW/50HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)    		 Dimensions
    Length*Width*Height (mm)
    6.95/0.8/8 6.6/1.0/10 5.9/1.2/12 246/116 233/145 208/174 37/50 1380*990*1220
  • Smart Two Stage Permanent Magnet VSD Screw Compressor

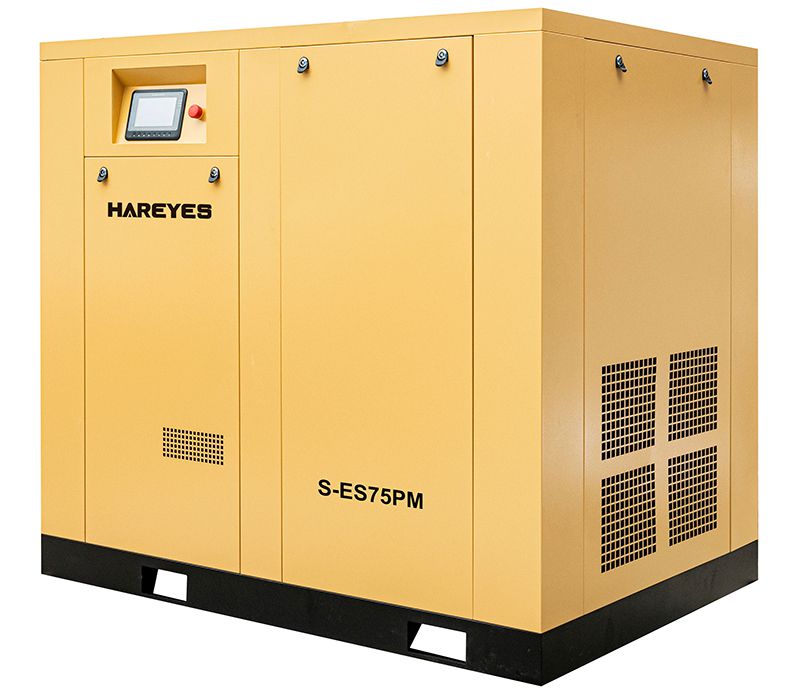

    S-ES75PM
    Smart Two Stage Permanent Magnet VSD Screw Compressor 55kW/75HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)    		 Dimensions
    Length*Width*Height (mm)
    11.3/0.8/8 10.2/1.0/10 9.4/1.2/12 399/116 360/145 332/174 55/75 1840*1290*1670
  • Smart Two Stage Permanent Magnet VSD Screw Compressor

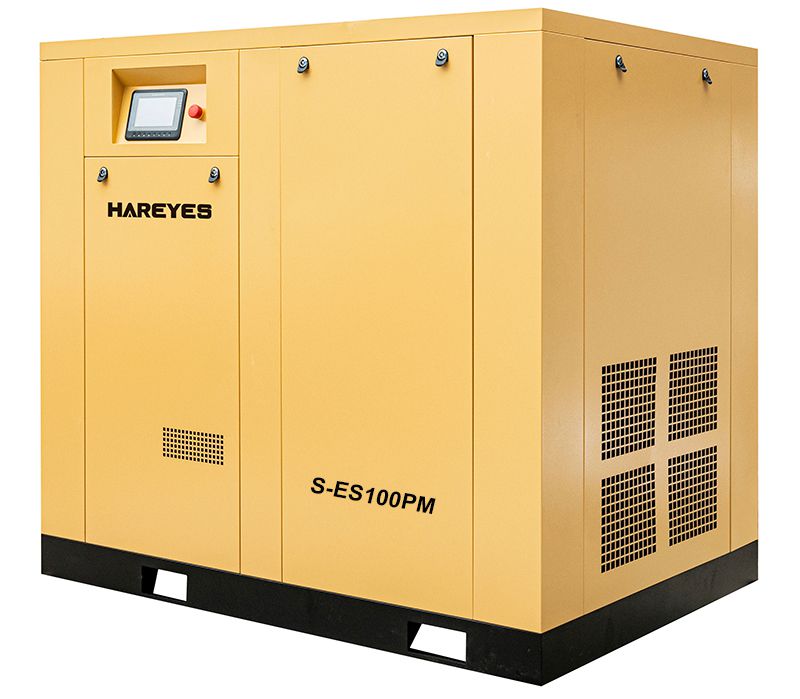

    S-ES100PM
    Smart Two Stage Permanent Magnet VSD Screw Compressor 75kW/100HP
    Air Displacement @ Pressure
    (M³/min @ MPa/Bar)     		Air Displacement @ Pressure
    (CFM @ PSI)     		Power
    ( kW/HP)     		Dimensions
    Length*Width*Height (mm)
    14.4/0.8/8 13.0/1.0/10 11.6/1.2/12 509/116 459/145 410/174 75/100 1840*1290*1670
Model S-ES30PM S-ES50PM S-ES75PM S-ES100PM
Air Displacement @ Pressure
(M³/min @ MPa/Bar) 		4.16/0.8/8 6.95/0.8/8 11.3/0.8/8 14.4/0.8/8
4.0/1.0/10 6.6/1.0/10 10.2/1.0/10 13.0/1.0/10
3.5/1.2/12 5.9/1.2/12 9.4/1.2/12 11.6/1.2/12
Air Displacement @ Pressure
(CFM @ PSI) 		144/116 246/116 399/116 509/116
141/145 233/145 360/145 459/145
124/174 208/174 332/174 410/174
Cooling Method Air cooling (water cooling available)
Discharge Temperature (℃) ≤40
Volume of Lubricant (L) 15 22 45 54
Noise Level dB(A) 72±2 75±2
Compression Stage Two-stage
Drive Method Direct Drive
Power
( kW/HP)		 22/30 37/50 55/75 75/100
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Motor Protection Class IP23
Starting Mode Variable frequency starting
Dimensions Length (mm) 1140 1380 1840 1840
Width (mm) 870 990 1290 1290
Height (mm) 1120 1220 1670 1670
N.W. kg 335 480 840 1010
Outlet Diameter (inch) G1" G1-1/2" G2"

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF
Features

  • Innovative Horizontal Design

    Our compressor features an innovative horizontal two-stage screw main unit with a low center of gravity, minimizing unit vibration and noise. It boasts two compression units, optimized rotor structures, and enhanced transmission efficiency, resulting in a more than 10% increase in air delivery at the same power and pressure.

  • Dedicated Inverter

    With a dedicated inverter for permanent magnet synchronous motors, our compressor achieves stepless speed control, constant-pressure air supply, soft startup, and ensures continuous unmanned operation.

  • Efficient Cooling System

    The compressor is equipped with an efficient cooling system that enhances cooling efficiency and extends the equipment's lifespan.

  • Intelligent Touchscreen Control

    The intelligent touchscreen control system offers a user-friendly interface, enabling smart automatic on-off operation and unattended functionality.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
