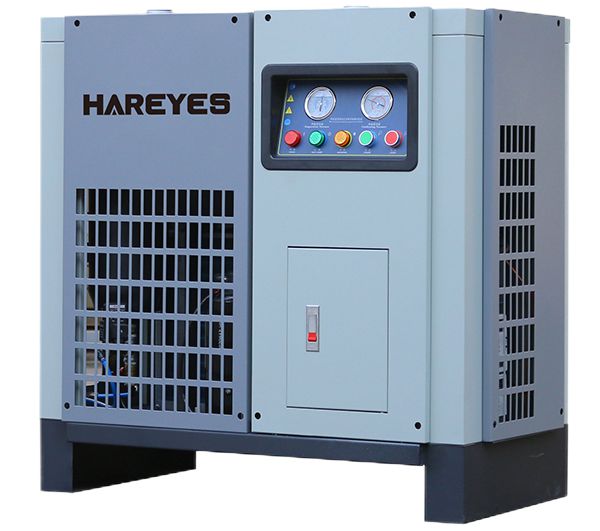

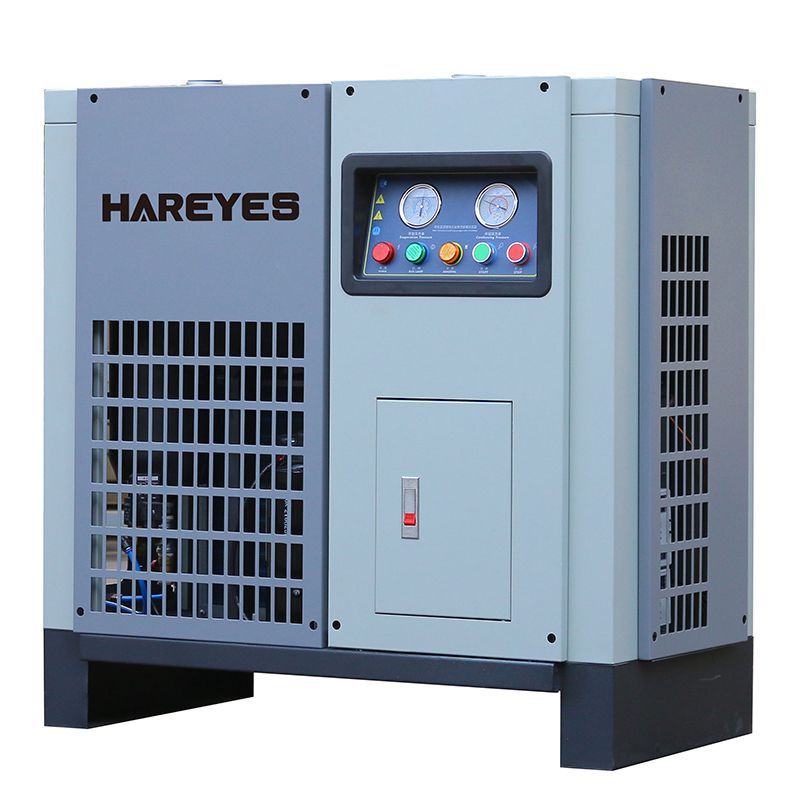

Refrigerated Air Dryer

  • Delivery Air Flow (Nm³/min): 1.5~55
  • Applicable for air compressor (kW/HP): 7.5/10~370/500
  • Power Supply (V/Hz): 220V 50Hz/380V 50Hz (Customization is available for various voltage and frequency)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

Resolve moisture issues in your compressed air systems effectively with refrigerated air dryers from HAREYES.

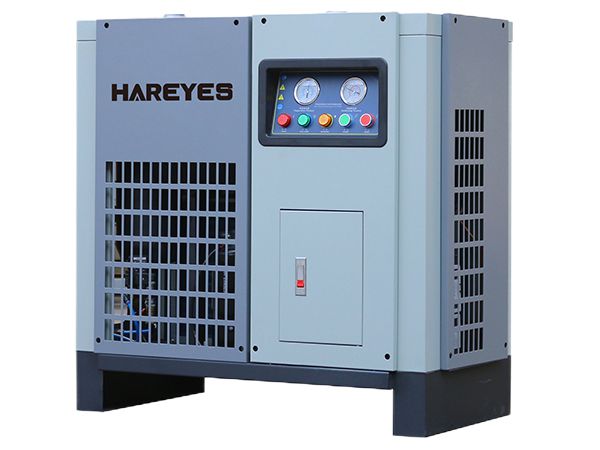

  • Refrigerated Air Dryer
    HA-036H
    Refrigerated Air Dryer 22kW/30HP
    Delivery Air Flow (Nm³/min) Compressor (kW/HP) Input Power (W) Power Supply (V/Hz) Dimensions Length*Width*Height
    (mm)
    3.8 22/30 1.1 220V50Hz 980*500*930

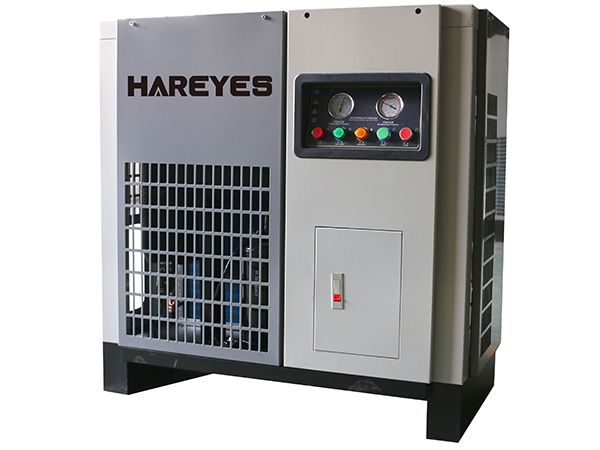

  • Refrigerated Air Dryer
    HA-065H
    Refrigerated Air Dryer 37kW/50HP
    Delivery Air Flow (Nm³/min) Compressor (kW/HP) Input Power (W) Power Supply (V/Hz) Dimensions Length*Width*Height
    (mm)
    6.5 37/50 1.5 220V50Hz 1030*550*1000

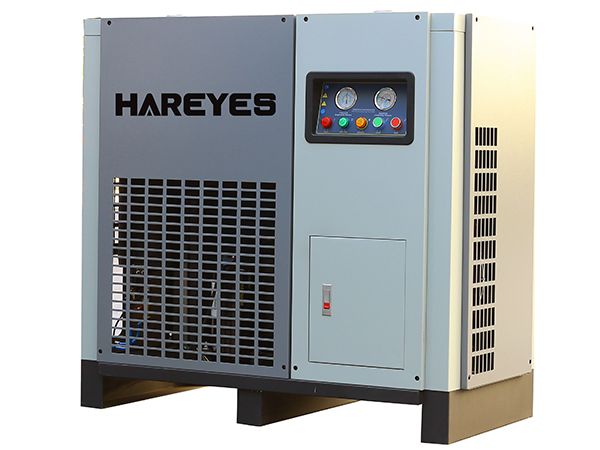

  • Refrigerated Air Dryer
    HA-105H
    Refrigerated Air Dryer 55kW/75HP
    Delivery Air Flow (Nm³/min) Compressor (kW/HP) Input Power (W) Power Supply (V/Hz) Dimensions Length*Width*Height
    (mm)
    10.5 55/75 2.7 220V50Hz 1240*650*1150

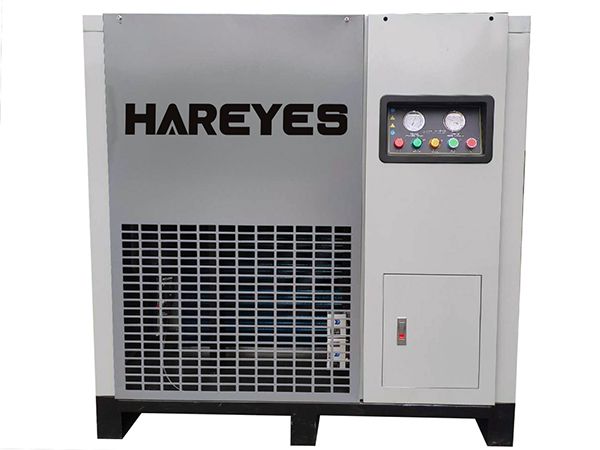

  • Refrigerated Air Dryer
    HA-130H
    Refrigerated Air Dryer 75kW/100HP
    Delivery Air Flow (Nm³/min) Compressor (kW/HP) Input Power (W) Power Supply (V/Hz) Dimensions Length*Width*Height
    (mm)
    13.5 75/100 3.1 380V50Hz 1350*670*1300

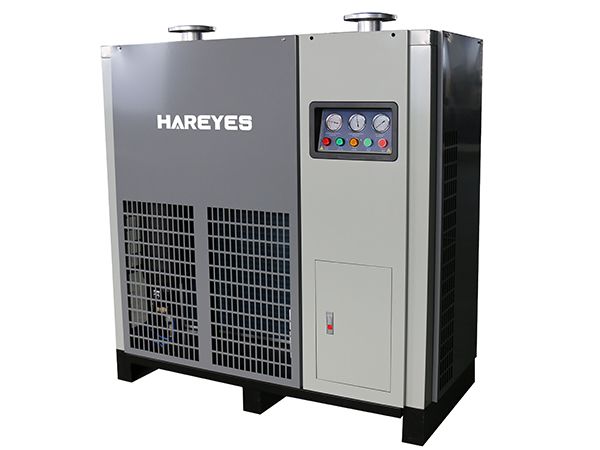

  • Refrigerated Air Dryer
    HA-230H
    Refrigerated Air Dryer 110kW/150HP
    Delivery Air Flow (Nm³/min) Compressor (kW/HP) Input Power (W) Power Supply (V/Hz) Dimensions Length*Width*Height
    (mm)
    21.5 110/150 5.2 380V50Hz 1450*700*1510
Model HA-012H HA-020H HA-024H HA-036H HA-065H HA-085H HA-105H HA-130H HA-170H HA-230H HA-270H HA-330H HA-420H HA-550H
Delivery Air Flow (Nm³/min) 1.5 2.0 2.5 3.8 6.5 8.5 10.5 13.5 17 21.5 28.5 32 41.5 55
Applicable for air compressor(KW/HP) 7.5/10 11/15 15/20 22/30 37/50 45/60 55/75 75/100 90/125 110/150 160/200 220/300 300/400 370/500
N.W.(KG) 48 65 58 95 110 130 160 225 235 295 430 450 600 780
Inlet /Outlet Diameter (inch/mm) G1 G1 G1″ G1.5″ G1.5″ DN50 G2″ G2.5″ G2.5″ DN80 DN80 DN80 DN100 DN125
Power(KW/HP) 0.68 0.5 0.83 1.1 1.5 2 2.7 3.1 3.1 5.2 5.5 6.2 7.8 11.7
Power Supply(V/Hz) 220V50Hz
(Customization is available for various voltage and frequency) 		380V50Hz
(Customization is available for various voltage and frequency)
Dimension (mm) L (mm) 680 400 800 980 1030 700 1240 1350 1350 1450 1550 1550 1700 2020
W (mm) 440 800 440 500 550 900 650 670 670 700 850 850 850 950
H (mm) 710 780 800 930 1000 1000 1150 1300 1300 1510 1595 1595 1740 1850

Note:
1. Pressure: 0.6-1.0Mpa
2. Dew Point: 2-10℃
3. Air inlet temperature: ≦80℃
4. Cooing Method: Fan-cooling (Water-cooling is available)

Download PDF Catalogue Download
Features
  • Constructed with quality thickened copper tubing to prevent corrosion-induced leakage, thereby extending the lifespan of the main unit.
  • Designed with a 20% buffer to ensure stable performance even under challenging conditions.
  • Equipped with a high-performance thermal exchanger and other quality components for enhanced efficiency.
  • Protection against phase loss, phase reversal, high and low-pressure, and overload.
  • Emergency alert features.
  • We offer customizable refrigerated air dryers in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
Related Air Treatment Equipment

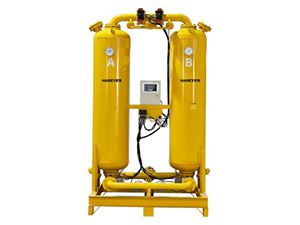

Desiccant Air Dryer Desiccant Air Dryer
