Vertical Two Stage Permanent Magnet VSD Screw Compressor, RE-E Series

  • Air Displacement (m³/min): 7.27～51.0
  • Discharge Pressure (MPa/Bar): (0.7/7.0)/(0.8/8.0)
  • Power (kW): 37~250 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E50PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 37kW/50HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    7.40/0.7/7.0 7.27/0.8/8.0 261/102 256/116 37/50 1740*1150*1600
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E75PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 55kW/75HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    11.9/0.7/7.0 11.7/0.8/8.0 420/102 413/116 55/75 2100*1400*1740
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E100PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 75kW/100HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    15.7/0.7/7.0 15.2/0.8/8.0 555/102 537/116 75/100 2100*1400*1740
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor

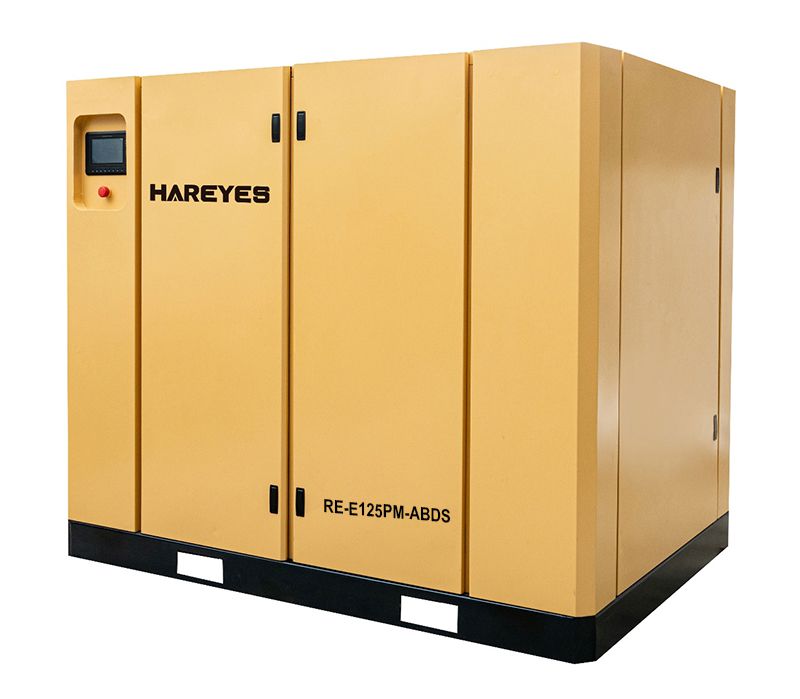

    RE-E125PM-ABDS
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 90kW/125HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    19.0/0.7/7.0 18.8/0.8/8.0 671/102 664/116 90/125 2540*1470*1840
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E125PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 90kW/125HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    18.0/0.7/7.0 17.7/0.8/8.0 636/102 625/116 90/125 2540*1470*1840
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E150PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 110kW/150HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    21.7/0.7/7.0 21.5/0.8/8.0 767/102 760/116 110/150 2540*1470*1840
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E175PM-ABDS
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 132kW/175HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    25.2/0.7/7.0 25.0/0.8/8.0 890/102 883/116 132/175 2540*1470*1840
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E175PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 132kW/175HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    26.1/0.7/7.0 25.9/0.8/8.0 922/102 915/116 132/175 2540*1470*1840
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor
    RE-E200PM-ABDS
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 160kW/200HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    31.0/0.7/7.0 30.5/0.8/8.0 1095/102 1078/116 160/200 2930*2040*2140
  • Vertical Two Stage Permanent Magnet VSD Screw Compressor

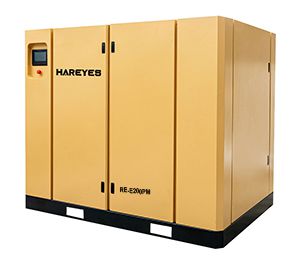

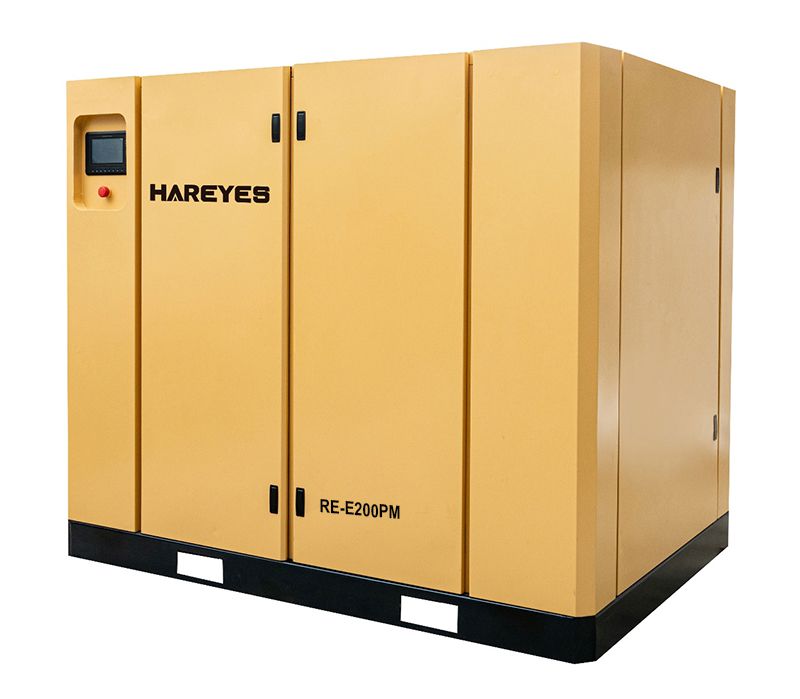

    RE-E200PM
    Vertical Two Stage Permanent Magnet VSD Screw Compressor 160kW/200HP
    Air Displacement @ Pressure (M³/min@Mpa/Bar) Air Displacement @ Pressure (CFM@PSI) Power (KW/HP) Dimensions Length*Width*Height (mm)
    32.0/0.7/7.0 31.5/0.8/8.0 1131/102 1113/116 160/200 2930*2040*2140
Model RE-E50PMRE-E75PM RE-E100PMRE-E125PM RE-E125PMRE-E150PMRE-E175PM RE-E175PMRE-E200PM RE-E200PMRE-E250PM RE-E250PMRE-E275PM RE-E275PMRE-E300PM RE-E300PMRE-E350PM
Air Displacement @ Pressure
(M³/min@Mpa/Bar)		 7.40/0.7/7.0 11.9/0.7/7.0 15.7/0.7/7.0 19.0/0.7/7.0 18.0/0.7/7.0 21.7/0.7/7.0 25.2/0.7/7.0 26.1/0.7/7.0 31.0/0.7/7.0 32.0/0.7/7.0 36.2/0.7/7.0 36.0/0.7/7.0 40.8/0.7/7.0 40.0/0.7/7.0 45.0/0.7/7.0 45.3/0.7/7.0 51.0/0.7/7.0
7.27/0.8/8.0 11.7/0.8/8.0 15.2/0.8/8.0 18.8/0.8/8.0 17.7/0.8/8.0 21.5/0.8/8.0 25.0/0.8/8.0 25.9/0.8/8.0 30.5/0.8/8.0 31.5/0.8/8.0 36.0/0.8/8.0 35.8/0.8/8.0 40.5/0.8/8.0 39.7/0.8/8.0 44.8/0.8/8.0 45.0/0.8/8.0 50.5/0.8/8.0
Air Displacement @ Pressure
(CFM@PSI)		 261/102 420/102 555/102 671/102 636/102 767/102 890/102 922/102 1095/102 1131/102 1279/102 1272/102 1412/102 1413/102 1590/102 1600/102 1802/102
256/116 413/116 537/116 664/116 625/116 760/116 883/116 915/116 1178/116 1113/116 1272/116 1265/116 1431/116 1403/116 1583/116 1590/116 1784/116
Cooling Method Air-cooling (Water-cooling available)
Discharge Temperature (℃) ≤40
Volume of Lubricant (L) 32 54 72 90 125 125 180
Noise Level dB(A） 72±2   74±2 76±2 74±2 76±2 80±2 78±2 80±2 78±2 80±2 78±2 80±2 78±2 80±2 78±2
Compression Stage Two stage Direct drive
Drive Method Direct drive Two stage
Power ( kW/HP) 37/50 55/75 75/100 90/125 90/125 110/150 132/175 132/175 160/200 160/200 185/250 185/250 200/275 200/275 220/300 220/300 250/350
Power Supply 380V/50Hz (can be customized as per your voltage and frequency requirements)
Protection class for Motor IP55
Starting mode Variable frequency starting
Dimensions L (mm) 1740 2100 2100 2540 2540 2540 2540 2540 2930 2930 2930 2930 3340 3340 3340 3340 3340
W (mm) 1150 1400 1400 1470 1470 1470 1470 1470 2040 2040 2040 2040 2120 2120 2120 2120 2120
H (mm) 1600 1740 1740 1840 1840 1840 1840 1840 2140 2140 2140 2140 2440 2440 2440 2440 2440
N.W. kg 1150 1800 1910 2450 2750 2950 3100 3450 3650 3900 4250 4500 5300 5700 5600 5900 6200
Outlet Diameter (inch/mm) G2" G2-1/2" DN80 DN80 DN100

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

  • Advanced Design

    Our air compressor features a cutting-edge vertical two-stage screw main unit. This design reduces compression ratios per stage, minimizes internal leaks, and improves volumetric efficiency. With larger rotors, our air compressor significantly enhances operational efficiency when compared to single-stage units, ensuring a high level of free air delivery. The main unit is built for durability, offering an extended lifespan and higher stability.

  • IE4 Permanent Magnet Synchronous Motor

    The integration of an IE4 permanent magnet synchronous motor offers superior energy efficiency compared to standard induction motors. The use of variable frequency technology enables a soft startup, reducing the peak current during startup and lowering overall power expenses.

  • Optimal Flow and Pressure Control

    Through precise flow and constant pressure control, we reduce energy consumption while maintaining pressure fluctuations within a tight range of ±0.01Mpa. This precision guarantees the consistent delivery of the required free air.

  • Direct-Drive System

    Our air compressor employs a split direct-drive system, ensuring high reliability, minimal noise, and straightforward maintenance.

  • Intelligent Control

    The fully intelligent control system of our air compressor provides real-time monitoring of critical parameters and dynamic displays of system status.

  • High Efficiency

    The vertical two-stage design significantly boosts air production by up to 15% compared to single-stage compression at the same power level, resulting in energy savings of up to 15%. Our VSD air compressors surpass fixed-speed screw compressors, achieving energy savings of 30%-40%.

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
