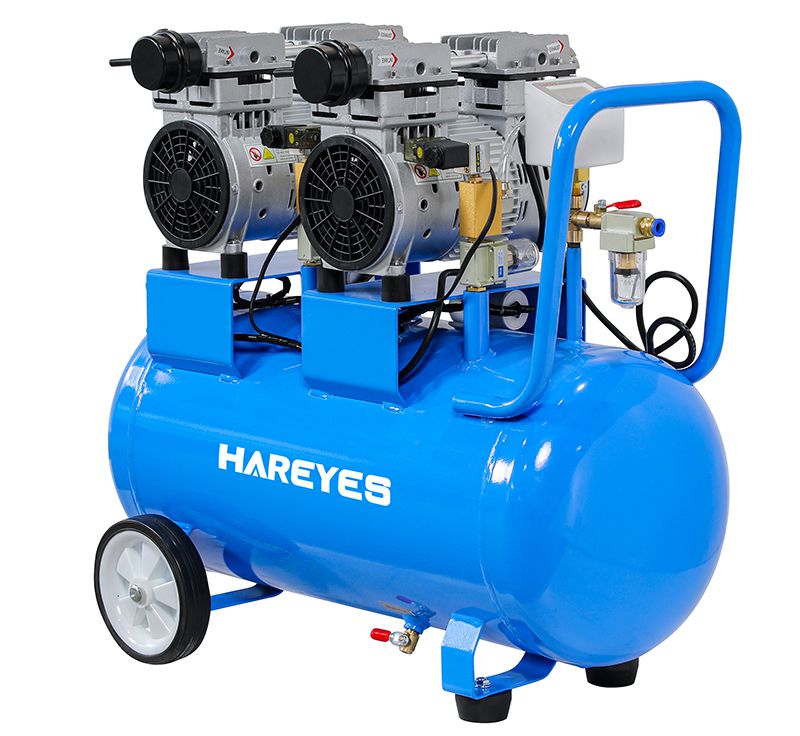

Oil Free Silenced Vacuum Pump
Inquiry

Oil Free Silenced Vacuum Pump

  • Air Displacement (L/min): 66～624
  • Tank Volume(L): 30~180
  • Speed (R.P.M): 1440
  • Power (W): 550~6000 (Customization is available)

We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.

  • Oil Free Silenced Vacuum Pump

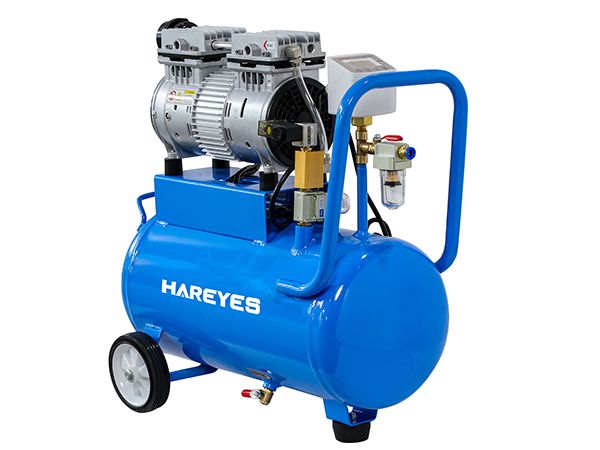

    VC550DY-30L
    Silent Oil Free Vacuum Pump 550W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    550 -0.93 L / Min CFM 53*30*55 60*27*56
    66 2.33
  • Oil Free Silenced Vacuum Pump

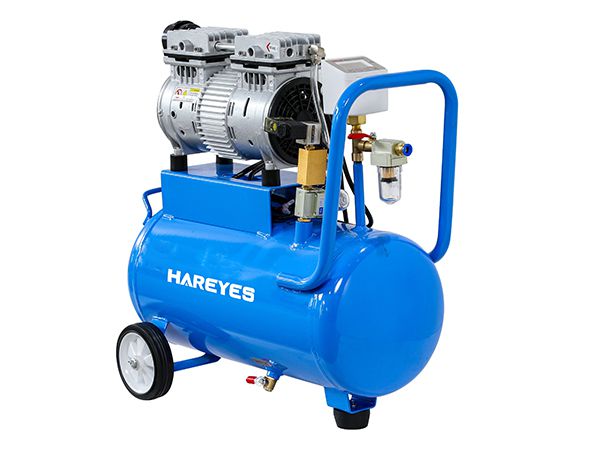

    VC550DE-30L
    Silent Oil Free Vacuum Pump 550W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    550 -0.98 L / Min CFM 53*30*55 60*27*56
    66 2.33
  • Oil Free Silenced Vacuum Pump

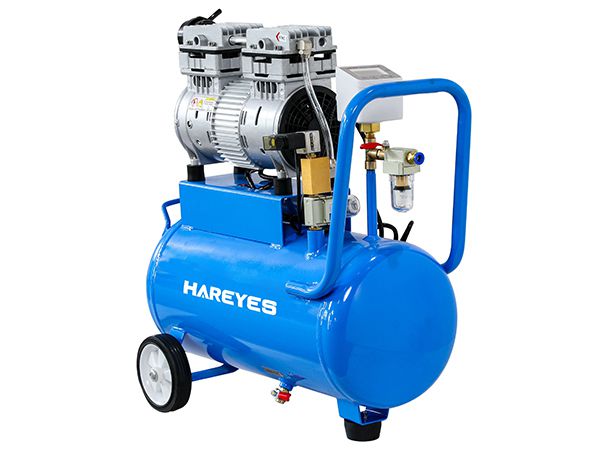

    VC750DY-30L
    Silent Oil Free Vacuum Pump 750W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    750 -0.93 L / Min CFM 54*30*58 60*27*57
    81 2.86
  • Oil Free Silenced Vacuum Pump

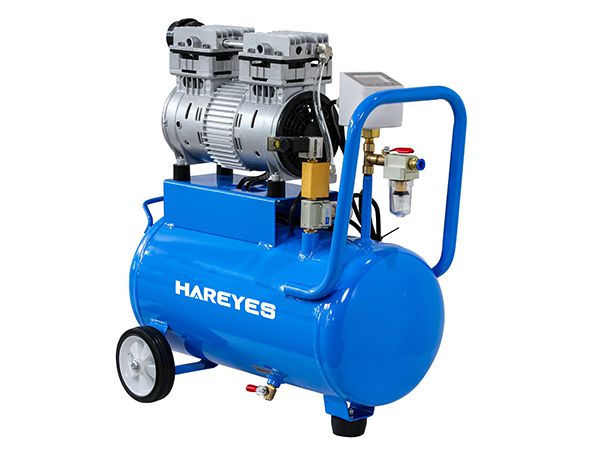

    VC750DE-30L
    Silent Oil Free Vacuum Pump 750W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    750 -0.98 L / Min CFM 54*30*58 60*27*57
    81 2.86
  • Oil Free Silenced Vacuum Pump

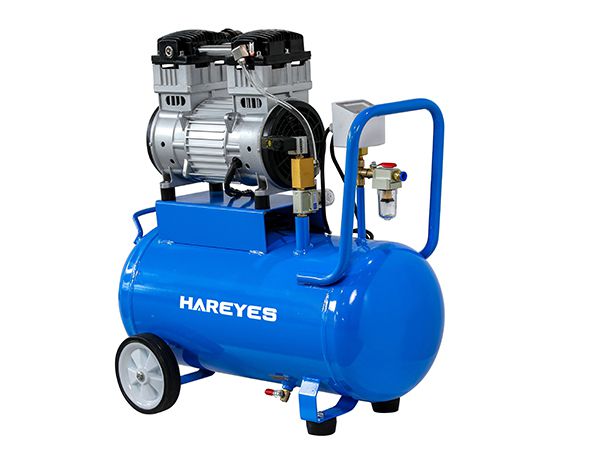

    VC1500DY-40L
    Silent Oil Free Vacuum Pump 1500W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    1500 -0.93 L / Min CFM 65*35*68 68*31*67
    156 5.51
  • Oil Free Silenced Vacuum Pump

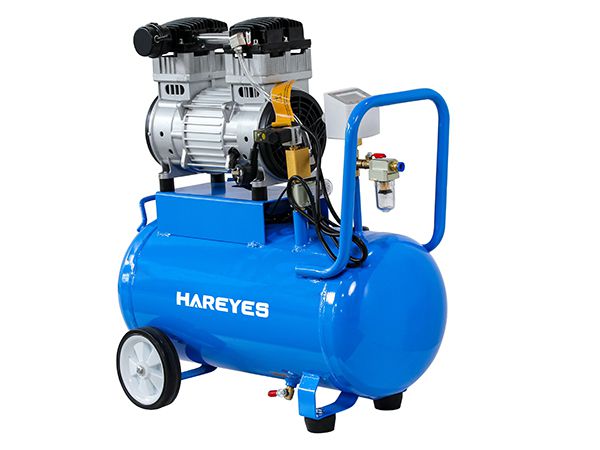

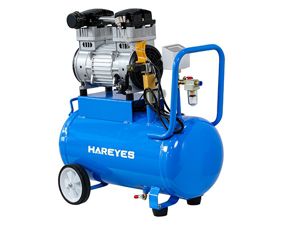

    VC1500DE-40L
    Silent Oil Free Vacuum Pump 1500W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    1500 -0.98 L / Min CFM 65*35*68 68*31*67
    156 5.51
  • Oil Free Silenced Vacuum Pump

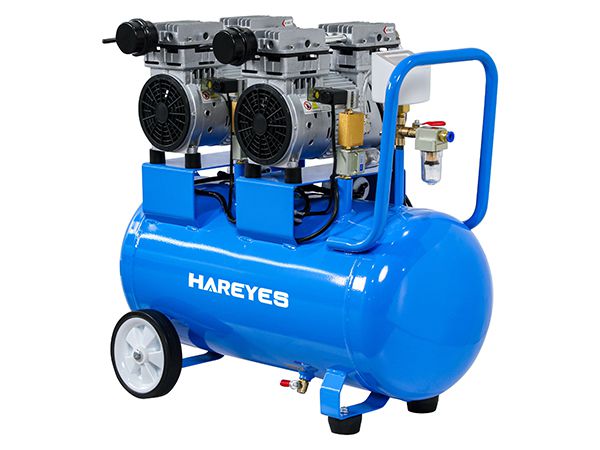

    VC1500DY-50L
    Silent Oil Free Vacuum Pump 1500W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    1500 -0.93 L / Min CFM 66*37*62 72*33*61
    270 9.53
  • Oil Free Silenced Vacuum Pump

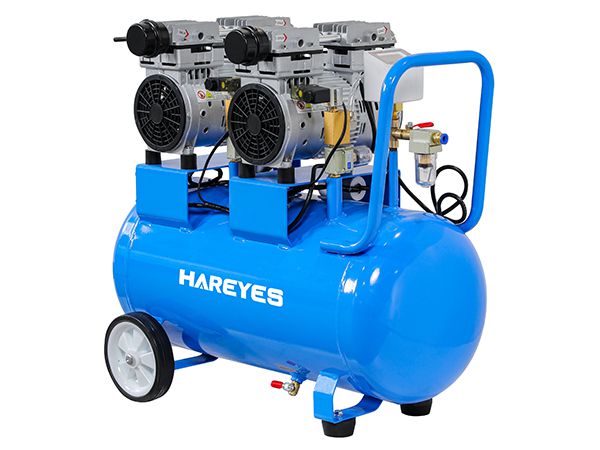

    VC1500DE-50L
    Silent Oil Free Vacuum Pump 1500W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    1500 -0.98 L / Min CFM 66*37*62 72*33*61
    270 9.53
  • Oil Free Silenced Vacuum Pump

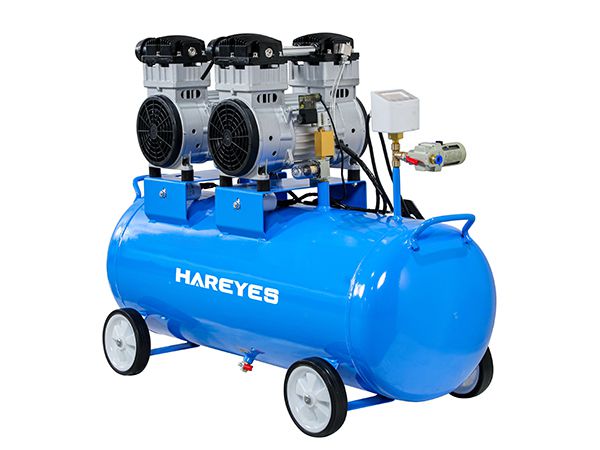

    VC3000DY-100L
    Silent Oil Free Vacuum Pump 3000W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    3000 -0.93 L / Min CFM 98*37*75 105*37*74
    312 11.02
  • Oil Free Silenced Vacuum Pump

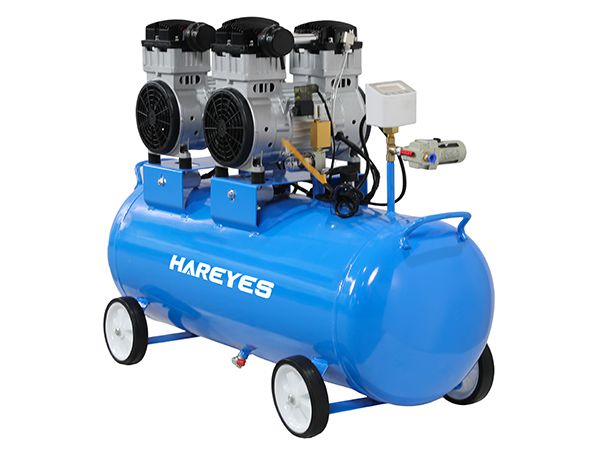

    VC3000DE-100L
    Silent Oil Free Vacuum Pump 3000W
    Power (W) Degree of Vacuum (kPa) Air Extraction Overall Dimensions (cm) Package Size (cm)
    3000 -0.98 L / Min CFM 98*37*75 105*37*74
    312 11.02
Model Power (W) Tank Volume Degree of Vacuum Voltage / Frequency Air Extraction Speed N.W. Overall Dimensions Package Size
(L) (kPa) L / Min CFM (R.P.M) (kg) (cm) (cm)
VC550DY-30L 550 30 -0.93/one stage 220V/50HZ 66 2.33 1440 21 53*30*55 60*27*56
VC550DE-30L 550 30 -0.98/two stage 220V/50HZ 66 2.33 1440 21 53*30*55 60*27*56
VC750DY-30L 750 30 -0.93/one stage 220V/50HZ 81 2.86 1440 21 54*30*58 60*27*57
VC750DE-30L 750 30 -0.98/two stage 220V/50HZ 81 2.86 1440 21 54*30*58 60*27*57
VC1500DY-40L 1500 40 -0.93/one stage 220V/50HZ 156 5.51 1440 32 65*35*68 68*31*67
VC1500DE-40L 1500 40 -0.98/two stage 220V/50HZ 156 5.51 1440 32 65*35*68 68*31*67
VC1500DY-50L 1500 50 -0.93/one stage 220V/50HZ 270 9.53 1440 37.8 66*37*62 72*33*61
VC1500DE-50L 1500 50 -0.98/two stage 220V/50HZ 270 9.53 1440 37.8 66*37*62 72*33*61
VC3000DY-100L 3000 100 -0.93/one stage 220V/50HZ 312 11.02 1440 66 98*37*75 105*37*74
VC3000DE-100L 3000 100 -0.98/two stage 220V/50HZ 312 11.02 1440 66 98*37*75 105*37*74
VC4500DY-160L 4500 160 -0.93/one stage 220V/50HZ 468 16.53 1440 106.4 120*40*86 128*46*84
VC4500DE-160L 4500 160 -0.98/two stage 220V/50HZ 468 16.53 1440 106.4 120*40*86 128*46*84
VC6000DY-180L 6000 180 -0.93/one stage 220V/50HZ 624 22.03 1440 131.6 138*40*87 146*46*83
VC6000DE-180L 6000 180 -0.98/two stage 220V/50HZ 624 22.03 1440 131.6 138*40*87 146*46*83

Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.

Download PDF Catalogue Download
Features

We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
