Oil Free Silenced Air Compressor, Standard Type 550W/0.75HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
550/0.75
8Bar/115PSI
L / Min
CFM
1380
46*17*48
51*21*51
102
3.60

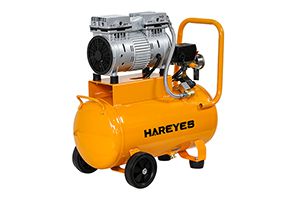

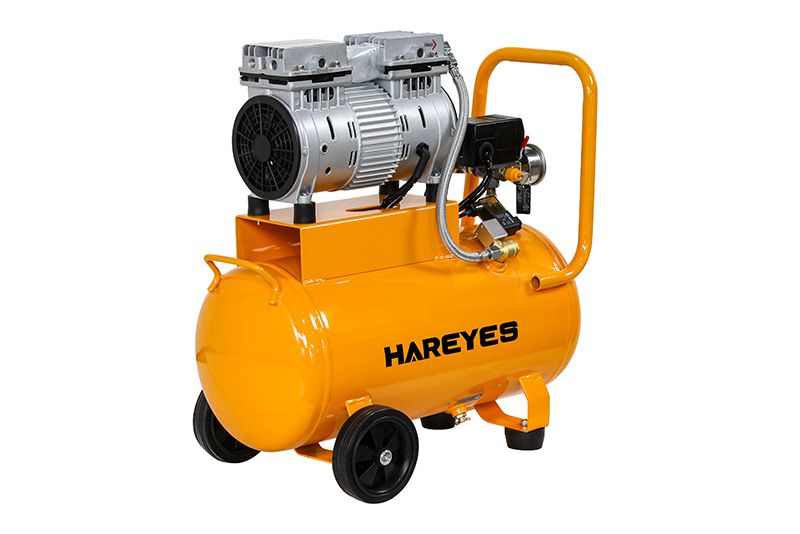

HRS550-24L
Oil Free Silenced Air Compressor, Standard Type 550W/0.75HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
550/0.75
8Bar/115PSI
L / Min
CFM
1380
55*30*55
59*27.5*54
102
3.60

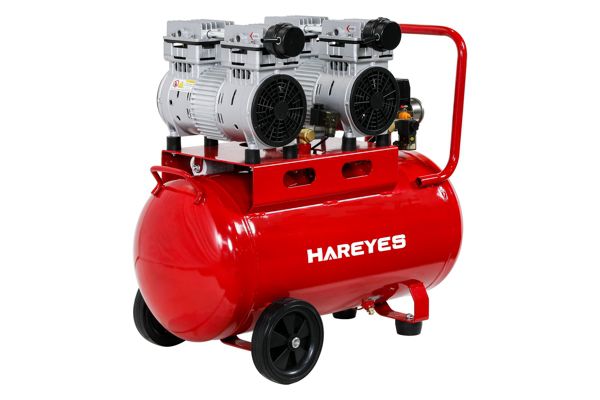

HRS550-2-50L
Oil Free Silenced Air Compressor, Standard Type 2*550W/1.5HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
2*550 /1.5
8Bar/115PSI
L / Min
CFM
1380
70*37*60
72*33*58.5
204
7.20

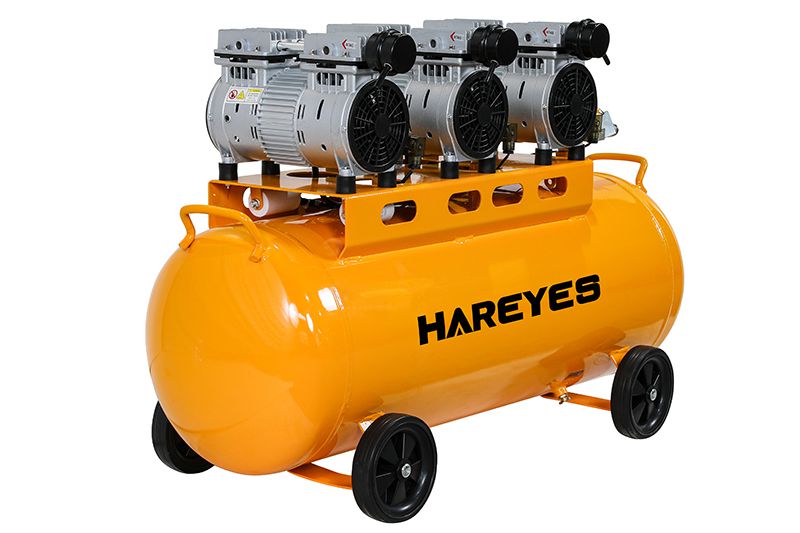

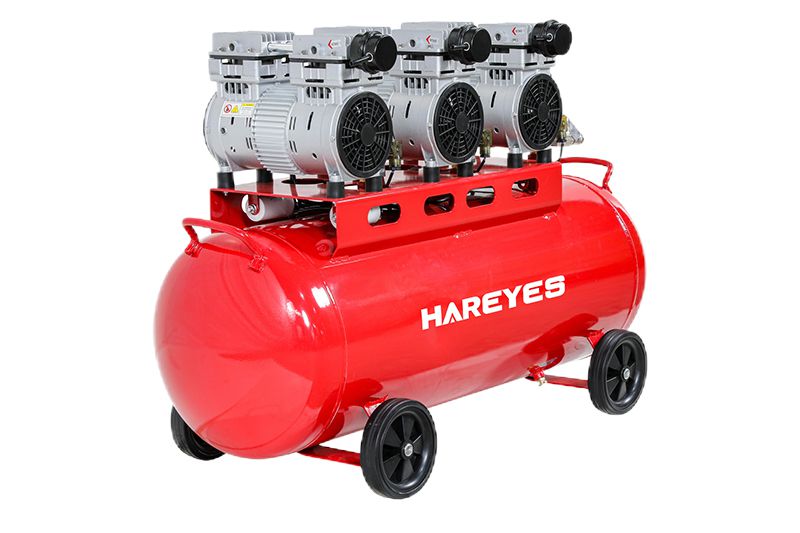

HRS550-3-90L
Oil Free Silenced Air Compressor, Standard Type 3*550kW//2.2HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
3*550/2.2
8Bar/115PSI
L / Min
CFM
1380
104*41*68
106*40*64
306
10.81

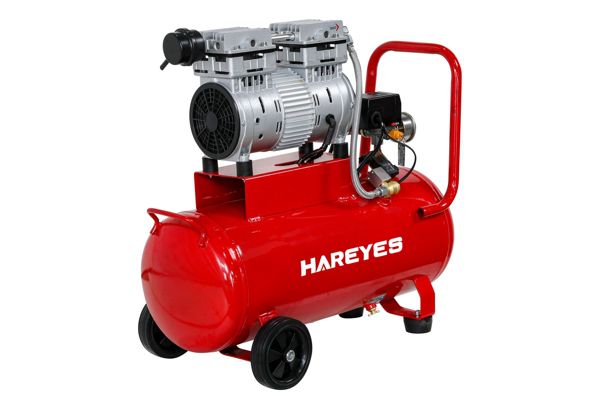

HRS750-30L
Oil Free Silenced Air Compressor, Standard Type 750W/1HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
750/1
8Bar/115PSI
L / Min
CFM
1380
64*31*58
67*28*59
124
4.38

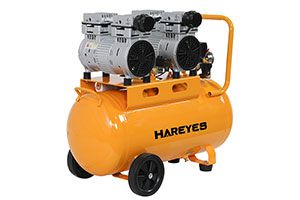

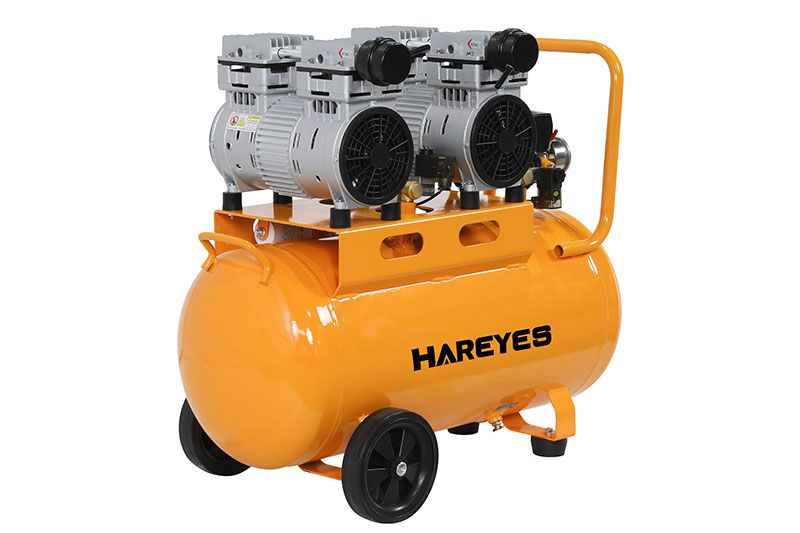

HRS750-2-50L
Oil Free Silenced Air Compressor, Standard Type 2*750W/2HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
2*750/2
8Bar/115PSI
L / Min
CFM
1380
68*37*58
72*33*60
248
8.76

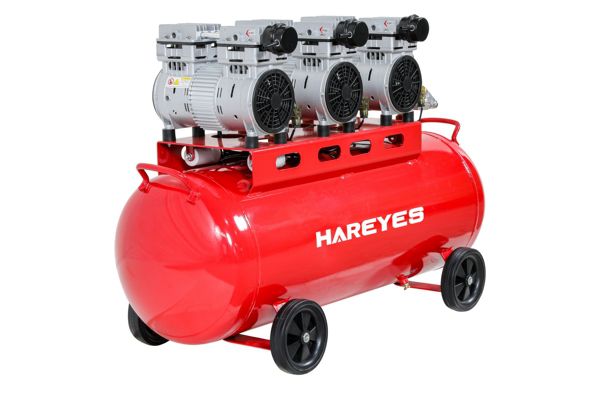

HRS750-3-90L
Oil Free Silenced Air Compressor, Standard Type 3*750W/3HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
3*750/3
8Bar/115PSI
L / Min
CFM
1380
104*41*68
106.5*39.5*67
372
13.14

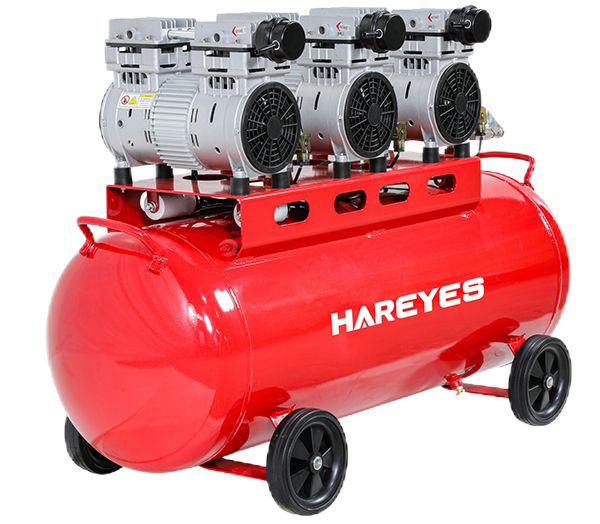

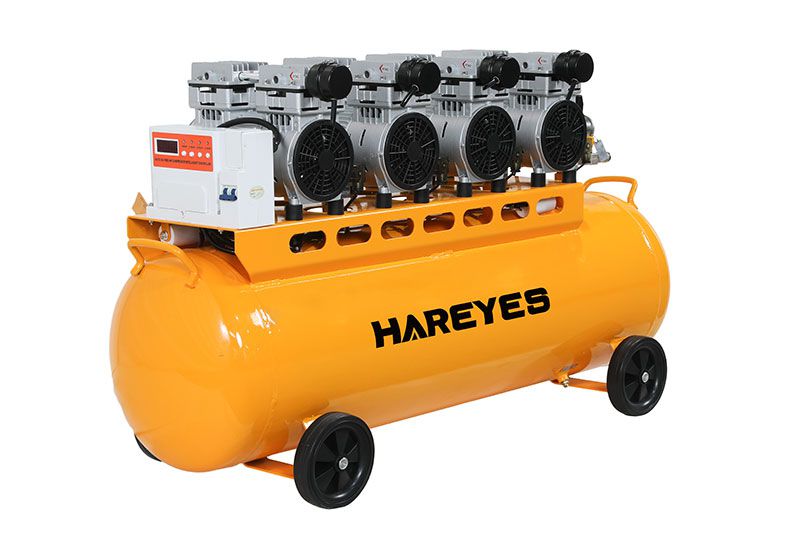

HRS750-4-120L
Oil Free Silenced Air Compressor, Standard Type 4*750W/4HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
4*750/4
8Bar/115PSI
L / Min
CFM
1380
121*43*67
126*39.5*66
496
17.51

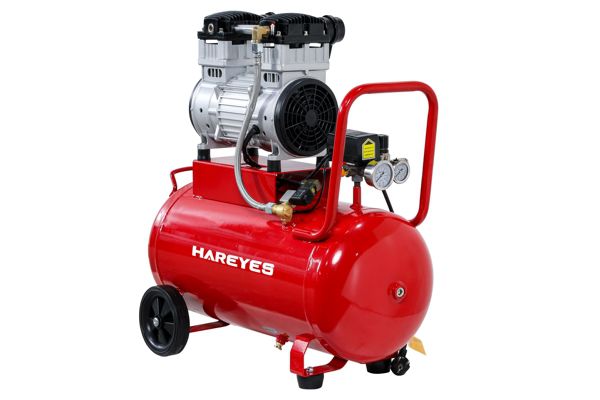

HRS1100-50L
Oil Free Silenced Air Compressor, Standard Type 1100W/1.5HP
Power (W/HP)
Maximum Pressure (Bar/PSI)
Air Displacement
Speed (R.P.M)
Overall Dimensions (cm)
Package Size (cm)
1100/1.5
8Bar/115PSI
L / Min
CFM
1380
67*38*70
72*33*69
200
7.06
Model
Power
Air Tank Capacity (Litre / Gal)
Maximum Pressure
Voltage /Frequency
Air Displacement
speed
N.W. KGS
Overall dimensions (cm)
Package Size (cm)
Litre / Min
CFM
(R.P.M)

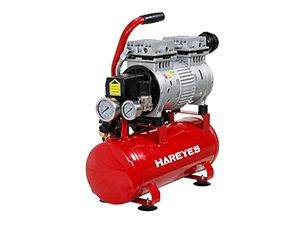

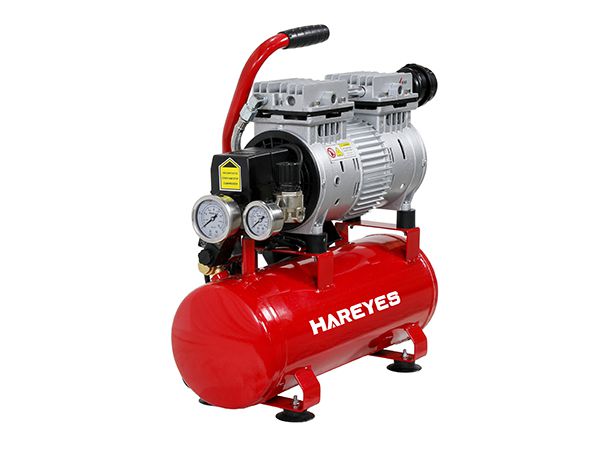

HRS550-8L
550W / 0.75HP
8/2.11
8Bar/115PSI
220V/50 HZ
102
3.60
1380
15.6
46*17*48
51*21*51
HRS550-24L
550W / 0.75HP
24/6.34
8Bar/115PSI
220V/50 HZ
102
3.60
1380
21
55*30*55
59*27.5*54
HRS550-2-50L
2*550w / 1.5HP
50/13.20
8Bar/115PSI
220V/50 HZ
204
7.20
1380
37.5
70*37*60
72*33*58.5
HRS550-3-90L
3*550W /2.2HP
90/23.76
8Bar/115PSI
220V/50 HZ
306
10.81
1380
52
104*41*68
106*40*64
HRS750-30L
750W / 1 HP
30/7.92
8Bar/115PSI
220V/50 HZ
124
4.38
1380
23.2
64*31*58
67*28*59
HRS750-2-50L
2*750W / 2HP
50/13.20
8Bar/115PSI
220V/50 HZ
248
8.76
1380
40
68*37*58
72*33*60
HRS750-3-90L
3*750W / 3HP
90/23.76
8Bar/115PSI
220V/50 HZ
372
13.14
1380
67.2
104*41*68
106.5*39.5*67
HRS750-4-120L
4*750W / 4 HP
120/31.68
8Bar/115PSI
220V/50 HZ
496
17.51
1380
84.5
121*43*67
126*39.5*66
HRS1100-50L
1100W / 1.5HP
50/13.20
8Bar/115PSI
220V/50 HZ
200
7.06
1380
33
67*38*70
72*33*69
HRS1100-2-100L
1100W*2 / 3HP
100/26.40
8Bar/115PSI
220V/50 HZ
400
14.12
1380
70
100*36*80
109*39.5*77
HRS1100-3-120L
1100W*3 / 4.48HP
120/31.68
8Bar/115PSI
220V/50 HZ
600
21.19
1380
94
122*42*74
124*37.5*73.5
HRS1100-4-180L
1100W*4 / 6HP
180/47.52
8Bar/115PSI
220V/50 HZ
800
28.25
1380
132
142*39*87
148*42.5*83
HRS1500-50L
1500W /2HP
50/13.20
8Bar/115PSI
220V/50 HZ
280
9.89
1380
34.2
68*37*71
72*33*69
HRS1500-2-100L
1500W*2 /4HP
100/26.40
8Bar/115PSI
220V/50 HZ
560
19.77
1380
72
106*35*80
109*39*75
HRS1500-3-120L
1500W*3 /6HP
120/31.68
8Bar/115PSI
220V/50 HZ
840
29.66
1380
96
123*42*74
124*37.5*74.5
HRS1500-4-180L
1500W*4 /8HP
180/47.52
8Bar/115PSI
220V/50 HZ
1120
39.55
1380
135
142*39*87
148*42.5*84
Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
